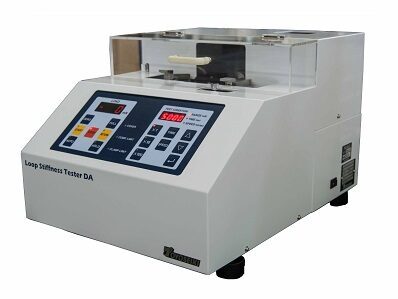

No. 581 Loop Stiffness Tester

The Loop Stiffness Tester evaluates stiffness of thin-film materials by measuring resistance when collapse in loop shape occurs.

Add To Enquiry
Loading...

Description

Specifications

Dimensions of sample Length: 90 to 180mm

Width: 6 to 25.4mm

Thickness: 100 to 250μm

Loop length (Effective) 50 to 120mm
Load range 5000mN (x1)

500mN (x10)

50mN (x100)

Compression rate 3.3mm/s
Interface RS-232C
Dimensions W360 x D490 x H310mm
Mass (Approx.) 25kg
Power supply Single-phase, AC100V, 50/60Hz, 0.3kVA (or specify)
