Description
The VG 8000 is a collimated light type gloss meter based on “Specular gloss – Measurement method (JIS Z 8741) ” .
A single measuring instrument can arbitrarily select from 5 angles of 20˚ , 45˚ , 60˚ , 75˚ , and 85˚ , and the selected angles can be measured simultaneously .
In addition , since long-life white LEDs are used as the light source, no settling time is required, and running costs are significantly reduced .
This instrument is ideal for evaluating coatings , resins , metals , films , etc. Furthermore , it can also be changed to the TAPPI method 75 ° gloss method (JIS P 8142) .

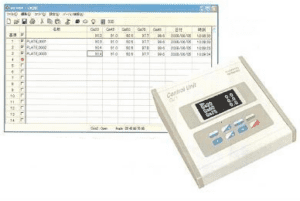

■ Software screen dedicated to VG8000
Specifications:
|
Measuring angle |
20 ° -20 ° , 45 ° -45 ° , 60 ° -60 ° , 75 ° -75 ° , 85 ° -85 ° . |
|
Measuring range |
Gloss / 20 ° : 0.1 ~ 2038G%, 45 ° : 0.1 ~ 1675G%, 60 ° : 0.1 ~ 1000G%, 75 ° : 0.1 ~ 378G%, 85 ° : 0.1 ~ 162G% Equipped with an automatic sensitivity switching function . |
|
Light source |
White LEDs |
|
Measurement time |
Single angle : Approx. . 1 sec , 2 angle : Approx. 2 sec , 5 angle : Approx. 4 sec |
|
Measuring aperture |
14mm x 45mm |
|
Measurement Accuracy |
20 consecutive measurements using the standard plate . Within ± 0.1% |
|
Measurement item |
Gloss , gloss difference |
|
Related standards |
JIS P 8142, JIS Z 8741, ASTM D 523, ASTM D 1223, ISO 2813, ISO 8254, TAPPI T 480, TAPPI T 653 |
|
Size / Weight |
Optical part size : W 483mm x D 157mm x H 240mm, Weight : 9 Kg Measuring part size : W 210mm x D 233mm x H 84mm, Weight : 1.5 Kg |
|
Power / Power Consumption |
Power : AC 100V ~ 240V, 50/60 Hz, Power consumption / optical part : 6VA, measuring part : 6VA |
|
Option |
Diffuse reflectance measurement / 45 degrees 0 degrees , Suction type sample presser , sample presser 1 Kg Type, etc. |
Display Device
- Control unit (CU – 1)
- PC
