Description

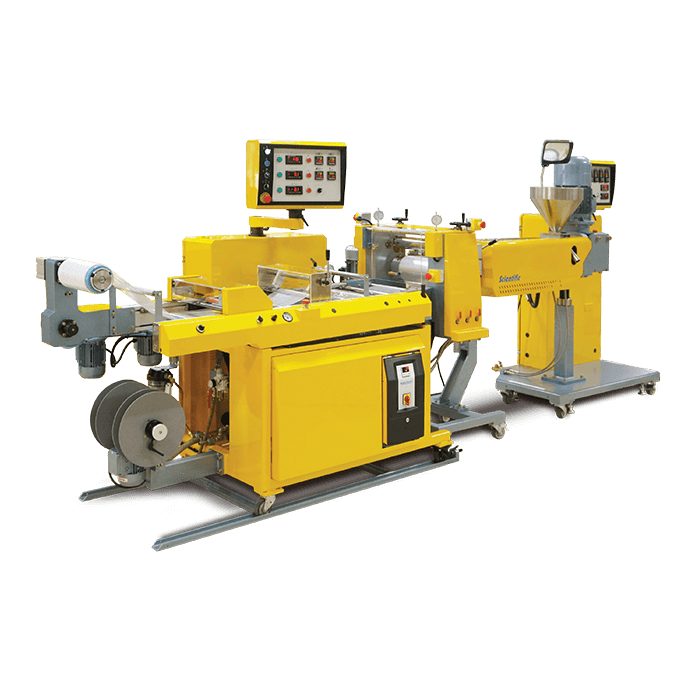

Single layer chill roll attachments have roll diameters up to 145 mm and are equipped with Pneumatic lay on of top roll against the center roll. Available in various roll widths up to 400 mm. Individual water tempering or oil heating for each roll. Equip with motorized tilting mechanism, the roll stack can be placed in horizontal or vertical.
Our heavy duty layer chill roll attachments have roll diameters of 145 mm and are equipped with heavy duty hydraulic lay on of both lower and upper rolls against the center roll. Available in various roll widths up to 400 mm. Individual water tempering or oil heating for each roll. Equip with motorized tilting mechanism, the roll stack can be placed in horizontal or vertical. The Chill roll attachment is supplied with individual servo motor drives for each roll.
| Single Layer Cast film & Sheet lines | LBCR-150 | LCR-175 | LCR-300 | LCR-300-HD | LCR-350 | LCR-350-HD |
| Roll width (mm) | 150 | 180 | 350 | 350 | 400 | 400 |
| Max. film width (un-trimmed) (mm) | 100 | 150 | 300 | 300 | 350 | 350 |
| Max. Die width (mm) | 100 | 150 | 300 | 300 | 350 | 400 |
| Roll diameter, all 3 rolls (mm) | 72.5/145/72.5 | 145 | 72.5/145/72.5 | 145 | 72.5/145/72.5 | 145 |
| Gap fine adjustment (mm) | 0.1 – 6 | 0.1 – 6 | 0.1 – 6 | 0.1-6 | 0.1 – 6 | 0.1-6 |
| Take-off speed (m/min) | 0.5 – 10 | 0.5 – 10 | 0.5 – 10 | 0.5-15 | 0.5 – 10 | 0.5-15 |
