Description

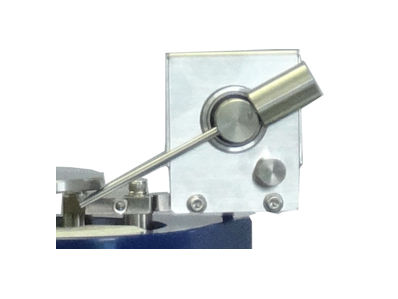

The Melt Indexer G-02 conforms to the ISO 1133 (JIS K 7210) and ASTM D1238, and measures the plastic melt mass-flow rate (hereafter referred to as “MFR”) in accordance with Procedure A, and the MFR and the melt volume-flow rate (hereafter referred to as “MVR”) in accordance with Procedure B (using the flow rate device).
SPECIFICATIONS
Model | G-02 |
Temperature range | 100 to 350°C (400ºC optional)
(Note: Standard calibration temperatures: 190°C, 230°C, 280°C, 300°C) |
Temperature accuracy | ±0.2°C
Resistance temperature detector: Pt100 |
Temperature resolution | 0.1ºC / 0.01ºC
(Can be changed in the environment settings) |
Test weights | 0.325kg, 2.16kg (Standard feature)
1.0kg, 1.05kg, 1.2kg, 3.8kg, 5.0kg, 10.0kg, 12.5kg, 21.6kg (Optional) |
Touch-screen | 4 inch LCD touch-screen
Languages: English, Chinese, Korean, and Japanese Test condition: 100 conditions can be saved Measurement data: 100 data can be saved |
Interface | RS-232C |
Power requirement | n Single-phase, AC100 to 115V, 50Hz or 60Hz, 0.6kVA
n Single-phase, AC200 to 230V, 50Hz or 60Hz, 0.6kVA (To be selected) |
Dimensions | W400 x D370 x H560mm
W400 x D370 x H820-945mm (Including weight lifting device) |
Weight | Approx. 40kg
Approx. 55kg (Including weight lifting device) |
Related standards | ISO 1133
ASTM D1238 JIS K 7210, K 6760, K 6870, K 6719, K 6758 |
Related standards
ISO 1133 | Plastics-Determination of the melt mass-flow rate (MFR) and melt volume-flow rate (MVR) of thermoplastics |
ASTM D1238 | Standard Test Method for Melt Flow Rates of Thermoplastics by Extrusion Plastometer |
