Description

Thickness Gauge for film and foils HTG-2-1

  • Weight on foot: 10,197 g….50,985 g
  • Modular design
  • Equipped with an interchangeable weight and foot R40
  • Conforms to following standards:
    • ISO 4593 (Plastics-Film and sheeting- Determination of thickness by mechanical scanning)
    • DIN ISO 4593 (part 2.1.2: plane/radiused measuring surfaces)

Features:

  • Laboratory grade granite base: ∅200 mm x 40 mm
  • Stainless steel Column: ∅30 mm
  • Sturdy aluminum lever
  • Individual serial number on weight/foot
  • Measuring way: 12,5 mm
  • 3 Resolution adjustable::
    • Resolution 10 µm = max. error 10 µm
    • Resolution 1 µm = max. error 3 µm
    • Resolution 0,1 µm = max. error 1,8 µm
  • Delivered with operating instructions and manual lifter

Optional:

  • Inhouse Calibration Certificate
  • Slip gauge

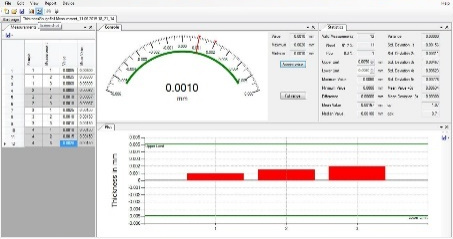

  • HilMeasure software
  • DAkkS-cert for gauge (measuring way)



Know More.

Additional information

Weight 60 kg
Country

, ,
