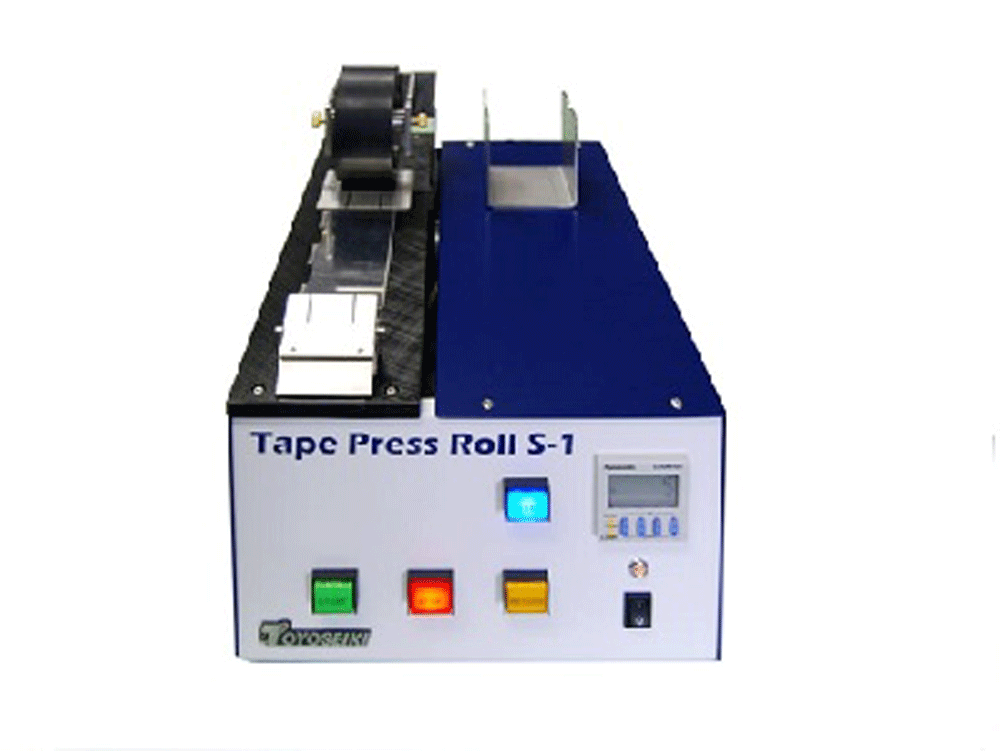

TOYOSEIKI: No. 278 Tape Press Roll, S-1

/
/
TOYOSEIKI: No. 278 Tape Press Roll, S-1
Loading...

TOYOSEIKI: No. 278 Tape Press Roll, S-1

In testing tracking force of adhesive tape correctly, it is necessary to adhere and make samples under certain conditions.  This is the roll device designed and developed to meet such conditions.

Add To Enquiry
Loading...

Description

Specifications

Weight of roller 2000g
Transverse distance 165mm
Transverse speed 10mm/s
Dimensions W260 x D360 x H280mm
Mass (Approx.) 12kg
Power supply Single-phase, AC100V, 50/60Hz, 0.2kVA (or specify)

Related standards

JIS Z 0237
